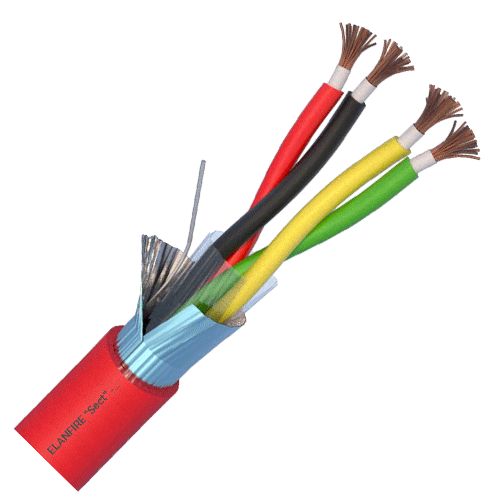

Cablu de incendiu E120 - 2x2x1.0mm, 100m - ELAN ELN120-2x2x1.0

Name: Cablu de incendiu E120 - 2x2x1.0mm, 100m - ELAN ELN120-2x2x1.0
Brand: ELAN
SKU: ELN120-2x2x1.0
Price: 1090.45 RON
Availability: InStock

1 090,45 RON (tartalmazza az ÁFÁ-t)

Buy now, pay later tól 25,03 RON / Hónap Részletek

Kiemelt termékek ugyanabból a kategóriából

Cablu de alarma 6 fire ecranate, cupru integral, 100m 6CUEF
165,53 RON
Cablu alimentare 2X0.75 MYYUP, 100m MYYUP-2X0.75
133,58 RON
Cablu alimentare 2X0.5 MYYUP, 100m MYYUP-2X0.5
104,54 RON
Cablu coaxial RG59 + alimentare 2x0.75, 305m, negru TSY-RG59+2X0.75-B
525,62 RON
Cablu de alarma 2 fire ecranate, cupru integral, 100m 2CUEF
84,22 RON
Cablu coaxial RG59 + alimentare 2x0.75, 100m, alb TSY-RG59+2X0.75-L-W
166,98 RON
Cablu de alarma 10 fire ecranate, cupru integral, 100m 10CUEF
275,88 RON
Cablu coaxial RG59 + alimentare 2x0.75, 305m, alb TSY-RG59+2X0.75-W
525,62 RON
Cablu alimentare MYYM 3x0.75, 100m MYYM- 3X0.75
229,42 RON
Cablu Coaxial RG6 TRISHIELD autoportant, 305m, negru TSY-RG6-TRIS-MESS
399,30 RON
Cablu incendiu 1x2x0.8mm, ecranat, 100m ELN-1x2x08
216,35 RON
Cablu de incendiu 2x2x0.8mm, ecranat, 100m ELN-2x2x08
380,42 RON
Cablu de alarma 12 fire ecranate, cupru integral, 100m 12CUEF
325,25 RON
Cablu Microcoaxial + alimentare 2x0.5, Cupru 100%, 100m MCX75-2x0.5
363,00 RON
Cablu alimentare 3X1 MYYM, 100m MYYM-3X1
268,62 RON
Cablu alimentare 2X1 MYYM, 100m MYYM-2X1
197,47 RON
Cablu alimentare 2X1.5 MYYUP, 100m MYYUP-2X1.5
233,77 RON
Cablu alimentare 3X2.5 MYYM, 100m MYYM-3X2.5
624,36 RON
Cablu alimentare 2X1 MYYUP, 100m MYYUP-2X1
171,34 RON
Cablu de alarma 8 fire ecranate, cupru integral, 100m 8CUEF
225,06 RON

Leírás

Conform Regulament CPR - UE nr. 305/11
Conductor Cupru litat cu sectiunea de 1.0mm2, diametru conductor 2.6 mm
Halogen-free, rezistent la flacara, certificat EN50200 (PH120)
Mentinerea integritatii in functionare (la parametrii electrici admisi) in mediu cu flacara, E120 (120 de minute in flacara directa).
Bucla rezistenta max. 36 Ω / km la 20°C
Culori fire: rosu/negru
Temperatura operare -15°C pâna la +80°C
Tensiunea nominala de operare 200 V
Tensiunea de testare 2000V (1min/50Hz)
Rezistenta izolatiei min. 200MΩ / km
Raza minima de curbura cca. 10 x diametrul cablului
Diametrul exterior al cablului - 10.40 mm

Model / producator: ELAN
Nr. de fire: 4
Sectiune fir: 1.0 mm2
Conductor: torsodat in perechi infasurate in banda din fibra de sticla/mica.
Manta: Halogen Free din din polimer halogen free si rezistent la flacara
Culori fire: rosu / negru / galben / verde
Diametru conductor: Ã2.6 mm (cupru litat 30x0.250)
Diametru exterior: Ã 10.4 mm
Diametrul exterior al cablului: 10.40 mm
"
