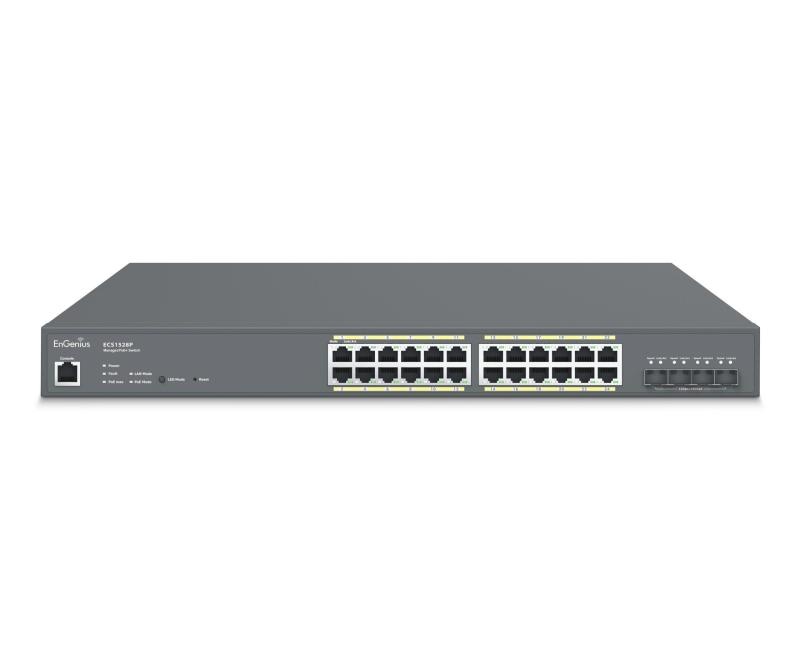

Switch EnGenius Managed 19i 24xGbE
RON 2,129.80
(VAT included)
Description
EnGenius Managed / stand-alone 19i 24xGbE + 4x10Gb SFP+, L2+, 240W Cloud Switch (PoE+) with 4x SFP+, 24-Port GbE PoE.af/at(+) 240W 4x10Gb SFP+ L2+ 19i Cloud Management Switch
Details
SKU
ECS1528P
Categories
Brand
Power over Ethernet (PoE)
Yes
Quality of Service (QoS) support
Yes
Jumbo frames support
Yes
MAC address table
16000 entries
Switching capacity
128 Gbit/s
ARP inspection
Yes
Switch layer
L2
Switch type
Managed
10G support
No
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports quantity
24
Power over Ethernet (PoE) ports quantity
24
Power source
AC
Power supply included
Yes
Total Power over Ethernet (PoE) budget
240 W
DHCP features
DHCP relay, DHCP snooping
IGMP snooping
Yes
Authentication type
RADIUS
Jumbo frames
10000
Stackable
No
Flow control support
Yes
Spanning tree protocol
Yes
Link aggregation
Yes
SFP module slots quantity
4
Cloud-managed
Yes
Multicast support
Yes
Access Control List (ACL)
Yes
Full duplex
Yes
SSH/SSL support
Yes
System event log
Yes
Multicast MAC address table
256 entries
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
IPv4 routes
63
Virtual LAN features
Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv6 routes
21
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)
Firmware upgradeable
Yes
Rack mount kit
Yes
Number of static routes
192
Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Memory type
SDRAM
SFP+ module slots quantity
4
Rack mounting
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Flash memory
128 MB
Web-based management
Yes
Static route
Yes
VLAN support
Yes
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Rackable
No
LAN-Port-Type
FastEthernet
Redundant-PSU
No
LAN-Ports
8
Weight
3.01 kg
Width
440 mm
Package width
540 mm
Package weight
4.15 kg
Cables included
AC, LAN (RJ-45)
Depth
260 mm
Height
44 mm
Package height
105 mm
Master (outer) case width
330 mm
Master (outer) case length
580 mm
Master (outer) case height
360 mm
Master (outer) case net weight
12.4 kg
Products per master (outer) case
3 pc(s)
LED indicators
Fault, LAN, PoE, Power
Operating temperature (T-T)
0 - 50 C
Product colour
Grey
Package depth
350 mm
Master (outer) case gross weight
13.3 kg
Security algorithms
SNMP, SNMPv2, SNMPv3
Certification
CE, FCC, IC
Manual
Yes
Operating relative humidity (H-H)
5 - 95%
